| Generelt |

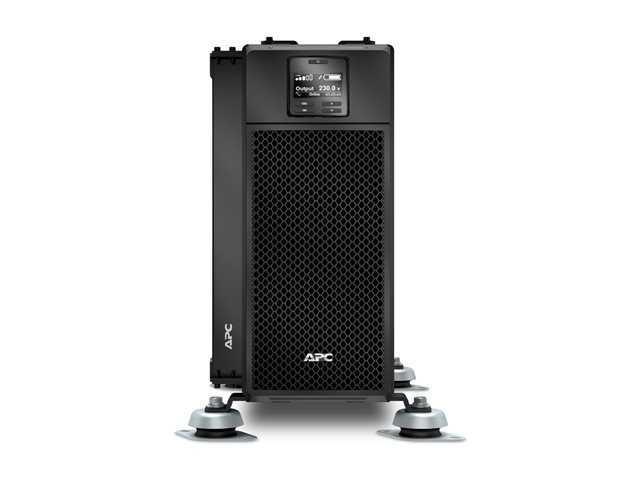

| Enhetstype | UPS - rackmonterbar/ekstern |
| Høyde (Stativenheter) | 4U |
| Strømenhet |
| UPS Teknologi | On-line |
| Inngangsspenning | AC 220/230/240 V |
| Inngangsspenningsverdiområde | AC 100 - 275 V |
| Frekvens medfølger | 50/60 Hz ± 3Hz |
| Frekvens nødvendig | 40 - 70 Hz |
| Inngangskontakter | 1 x hardkabel 3-kabels (1PH + N + G) |

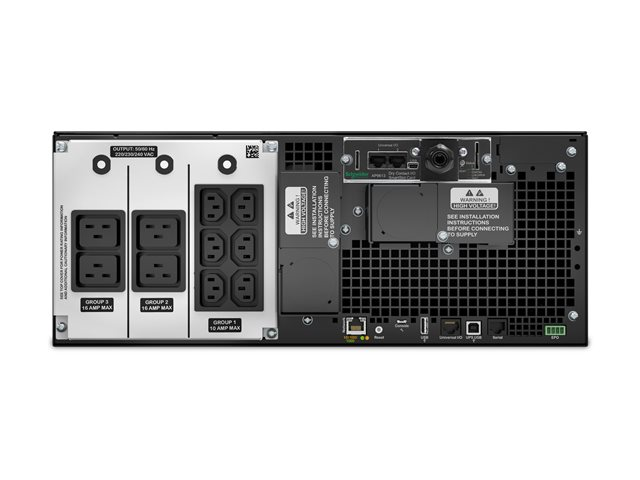

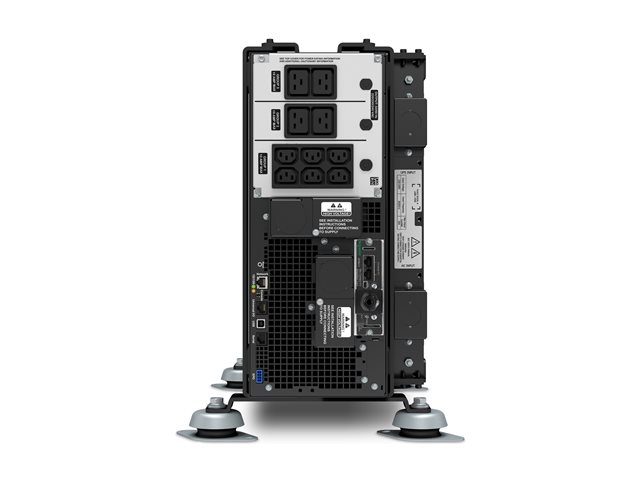

| Detaljer om strømutgangskoblinger | 6 x power IEC 60320 C13
4 x strøm IEC 60320 C19 |
| Utgangsspenning | AC 220/230/240 V 50/60 Hz |
| Effektkapasitet | 6000 watt / 6000 VA |

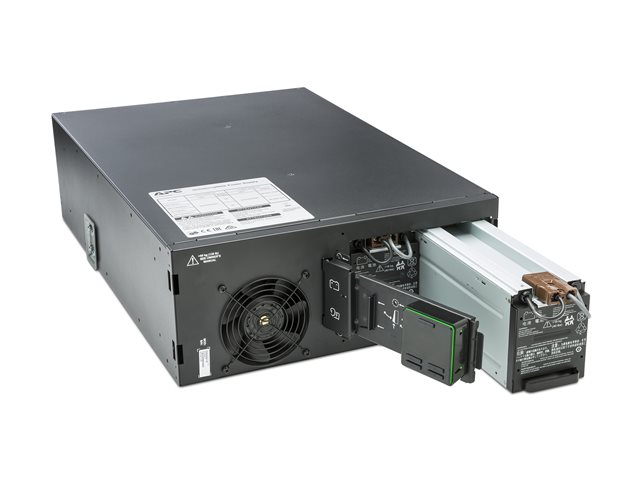

| Batteri |
| Teknologi | Blysyre |
| Kjøretid (inntil) | 3 minutter ved full last
9 minutter ved halvlast |
| Oppladingstid | 1.5 timer |
| Egenskaper | Lekkasjesikker, vedlikeholdsfri, forseglet |
| Nettverkstilknytning |
| Fjernstyringsgrensesnitt | Ethernet, serial |
| Ekspansjon / Tilkoplinger |
| Grensesnitt | 1 x EPO (emergency power off)
1 x seriell - RJ-45
1 x USB - 4-pins USB-type B
1 x forvaltning (Ethernet) - RJ-45
1 x sensor - RJ-45 |
| Utvidelsesspor | 1 SmartSlot |
| Diverse |

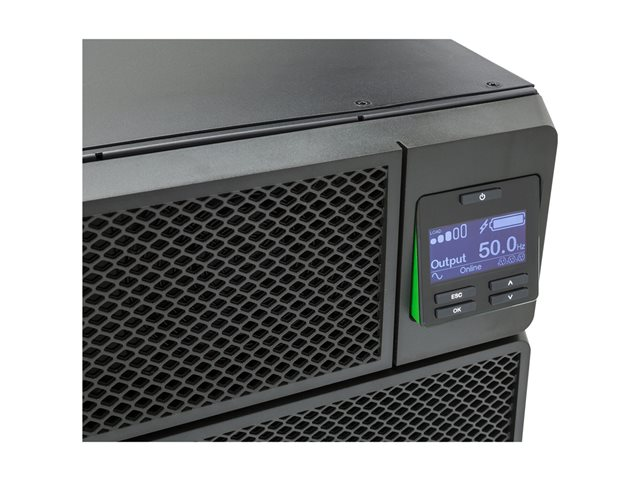

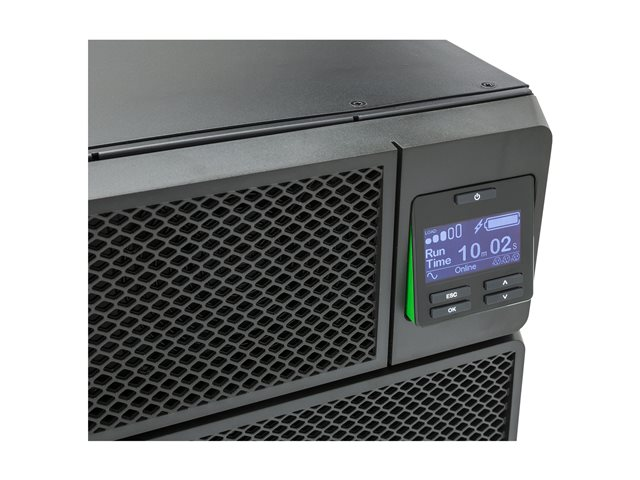

| Egenskaper | Nødavslåing, LED-skjerm |
| Tilpassede standarder | EAC, IACS-E10, IEC 60945, IEC 62040-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, KCC, RCM, VDE, VFI-SS-111, IEC 62430 |
| Fabrikantgaranti |
| Service og støtte | Begrenset garanti - 3 år |
| Størrelser og vekt |
| Bredde | 43.2 cm |
| Dybde | 71.9 cm |
| Høyde | 17.4 cm |
| Vekt | 60 kg |
| Informasjon om kompatibilitet |
| Designet for | P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC2513, ACF001, ACF002, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR3000, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3103, AR3103SP, AR3104, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3106SP, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3350, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR3357X674, AR7007, AR7050, AR7057, DLRT192RMBP, DLRT192RMBP2, NBWL0356A, SMX2000LV, SMX2000LVUS, SRT1000RMXLA-NC, SRT1000XLA, SRT10KRMXLT, SRT10KRMXLT-10KTF, SRT10KRMXLT-5KTF2, SRT10KRMXLT-IEC, SRT10KXLT, SRT10KXLT30, SRT10KXLT-5KTF2, SRT10KXLT-IEC, SRT10KXLTUS, SRT1500RMXLI-NC, SRT1500XLA, SRT1500XLI, SRT192BP, SRT192BPUS, SRT192RMBP, SRT192RMBP2, SRT192RMBP2US, SRT192RMBPM, SRT192RMBPUS, SRT2200RMXLA, SRT2200RMXLA-NC, SRT2200RMXLAUS, SRT2200XLA, SRT2200XLI-KR, SRT3000RMXLA, SRT3000RMXLA-NC, SRT3000RMXLT, SRT3000RMXLT-5KTF, SRT3000RMXLT-NC, SRT3000RMXLW-IEC, SRT3000XLA, SRT3000XLAUS, SRT3000XLT, SRT3000XLT-5KTF, SRT3000XLW-IEC, SRT5KRMXLT-5KTF, SRT5KRMXLT-IEC, SRT5KRMXLTUS, SRT5KXLT, SRT5KXLT-5KTF, SRT5KXLT-IEC, SRT5KXLTUS, SRT6KRMXLT-5KTF, SRT6KRMXLT-IEC, SRT6KXLT-5KTF, SRT6KXLT-IEC, SRT6KXLTUS, SRT72BP, SRT72RMBP, SRT72RMBPUS, SRT8KRMXLT30, SRT8KRMXLT-5KTF, SRT8KXLT, SRT8KXLT30, SRT8KXLT-5KTF, SRT8KXLT-IEC, SRT8KXLTUS, SRT96BP, SRT96RMBP, SRT96RMBPUS, SUA1500R2X93 |
|
